AI - SRS Fast Hop Precision Rings (TESTING PHASE - READ DESCRIPTION)

 ******************************************************************************************

PRODUCT CURRENTLY IN TESTING PHASE  - READ BEFORE ORDERING!
We are currently offering this product to people under the acknowledgement that it requires widespread testing, we have tested the part in house and happy with how it performs, however due to the wide array of setups, we require feedback from a wider client base before we are happy to class the product as fully released.

What does that mean?

The good news, we are offering the product at a highly discounted rate for a short period, but would request that you submit productive feedback on the product, both positive and negative, as well as details on issues you encounter.

The bad new,
The product is not currently supplied with any sort of guarantee or warranty. Although the product should be compatible with 100% of fast hop setups, there may be some oversights on my part which mean that it does not work for your setup.
For this reason we are happy to replace the product once enough feedback has been received and adequate alterations are made, however we are unable to cover postage fees, and these would need to be covered by yourself before any replacements are provided

******************************************************************************************

AI - SRS Fast Hop Precision Rings

The Fast hop unit is my personal favorite hop for the SRS, however I have found that it can be difficult to fine tune the amount of hope being applied.
As the unit needs to cover a wide range of setups such as different buckings and nubs the difference between 0 and 9 on the wheel is substantial.
Yet most people will find that once they are dialed in to the correct setting, then only a small increase will be the difference between underhopping and overhopping, this is where the precision rings can help.

What is it and what does it do?

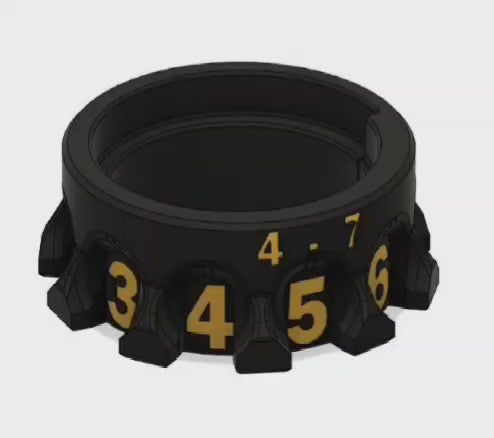

The rings are a direct replacement for the hop adjustment wheel found on the Silverback SRS Fast hop unit, with one key difference. They have a 2.5x shallower angle to the adjustment, this means that your adjustment is 2.5x more precise, allowing much finer control over the amount of hop being applied.

Each set includes 4 rings with each providing a range equivalent to 4 points on the original wheel. So for example, when compared to the original
"Ring 1" Covers 0-3
"Ring 2" Covers 2-5
"Ring 3" Covers 4-7
"Ring 4" Covers 6-9

Which wheel should i use?

Simply have your fast hop (with stock wheel) setup to the correct amount of hop, then take a note of which setting it is on, then select the precision ring which provides the best range around that value.
For example, if your hop is set to 6 on the original fast hop wheel then select "Ring 3" which covers values 4-7.
Alternatively, you can use trial and error, if one ring causes overhopping/jamming then use a lower ring, or if there is not enough hop when use a higher ring.


What else

We have added oversized tabs to the outside of the wheel, making it easier to adjust than the original especially when using gloves.

Highly contrasting colours have been used to make the currently set value easy to see even in low light.

The parts are printed using a 0.2mm nozzle and much lower layer height, this means that although is significantly increases the print time (4x longer when compared to a "standard 0.4mm nozzle" and 0.2mm layer), it allows much higher precision which is crucial for a product such as this .

This is an original design, designed and printed in house by us at Airsoft Industries
